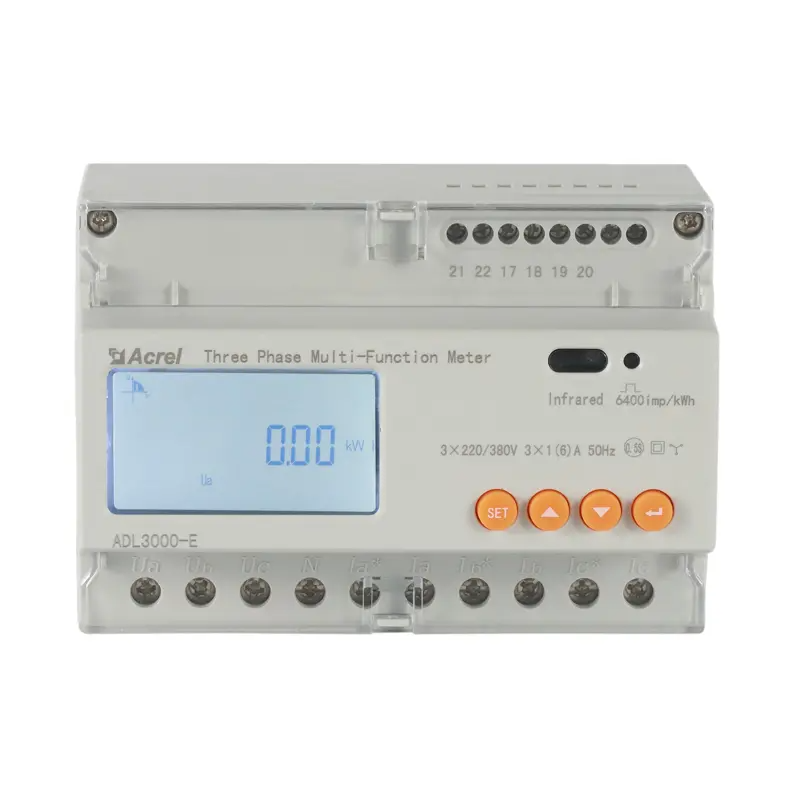

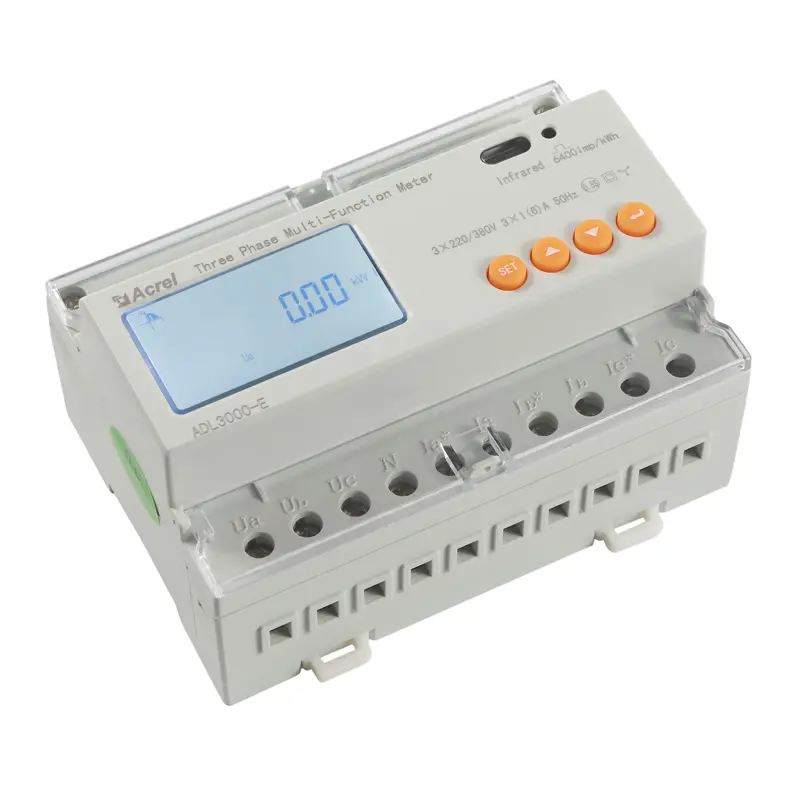

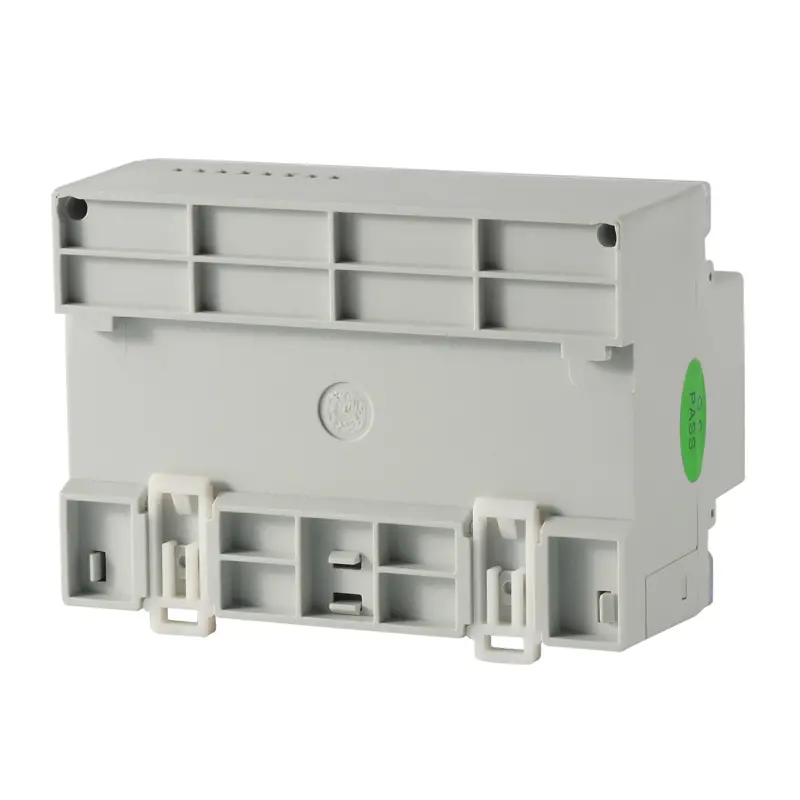

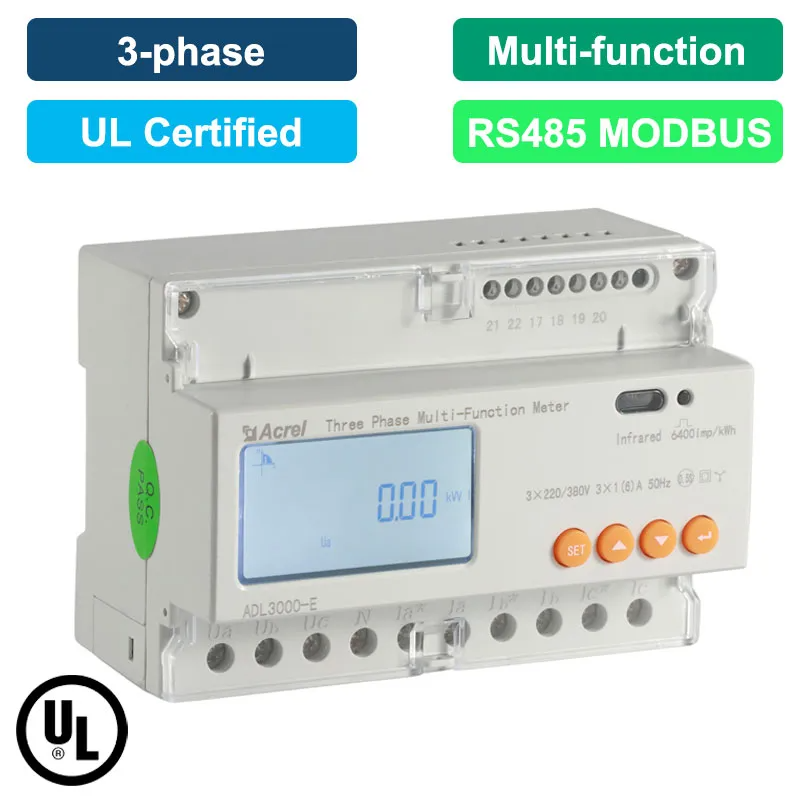

ADL3000-E Three-phase Multi-function DIN Rail Energy Meter

● Measurement: 3-phase kWh (0.5S), Active Power, Reactive Power, Current, Voltage, Harmonic and etc ● Voltage Rating: 3x220/380V, 3x57.7/100V (3P4W); 3x380V, 3x100V (3P3W) ● Current Rating: 3x10(80)A; 3x1(6)A ● Frequency: 45~65Hz ● Commnunication: RS485 (MODBUS-RTU) and Infrared ● Multi-rate: Spike, Peak, Valley and Flat kWh ● Extra Function: Cable Temperature Measurement and DO/DI ● Display: LCD (8 digits) ● Dimension: 127*88*70mm (L*W*H) ● Wiring: 3-phase 4wire; 3-phase 3-wire ● Installation: 35mm DIN Rail ● Standard&Certificate: UL; IEC; CE

Contact us
*Name
*Phone
*E-mail
*Message
Information
Parameter
Download
Video
Related Products

BA series output 4-20mA or 0-5v intelligent current sensor

The intelligent BA series current sensor uses the principle of electromagnetic induction to measure the AC current in the power grid in real time and uses constant current and linear compensation technology to isolate and transform it into a standard DC signal output, or through the RS485 interface (Modbus-RTU protocol) to transmit the measurement data. DC24V or 12V safety voltage power supply, can be widely used in the field of industrial automation. BA50L(Ⅱ)-AI is an AC residual current transformer, which mainly detects the leakage current of the electrical system, can grasp the status of electrical circuits and equipment at any time, and prevent fires and other accidents caused by leakage.

Acrel ADW220 Series Multi-Loop IOT Power Meter

2024-03-12

●Model：ADW210-4S ● AC 3×220/380V ● 100A 400A 600A ● postpaid mode ● LCD display ● kWh Class 1 ● DIN 35 mm ●Application:Building Energy Management, Multi circuit electrical energy measurement

Acrel ADW210-4S Series Multi-Loop IOT Power Meter

2024-03-12

●Model：ADW210-4S ● AC 3×220/380V ● 100A 400A 600A ● postpaid mode ● LCD display ● kWh Class 1 ● DIN 35 mm ●Application:Building Energy Management, Multi circuit electrical energy measurement

Acrel 48V 6 channels dc power meter for Data Center AMC16L-DETT

2024-02-23

● Model：AMC16L-DETT ●LCD display ●Measuring Voltage Range:±dc48V ●Rated current loop input:inlet:5 outlet:20mA Voltage measure range:AC40-400V ●1*RS485 ●Commercial power monitoring:1 channel: 0-5VDC ●Overload capacity:Voltage:1.2times continued,2 times continued 1s;Current: 1.2 times continued,10 times continued 1s. ●Measurement resolution:Voltage output accuracy 0.01V; current output accuracy 0.01A; power output accuracy 0.01kw; energy output accuracy 0.01kwh. ●Basic function:Monitor device system time, total voltage, output total current, power, energy, each channel voltage, current, power, energy; LED indicator display;485 communication.
